192×64 monochrome COG LCD

Product Description



https://www.highlystarelec.com/products/hsk-415-cog-lcd.html

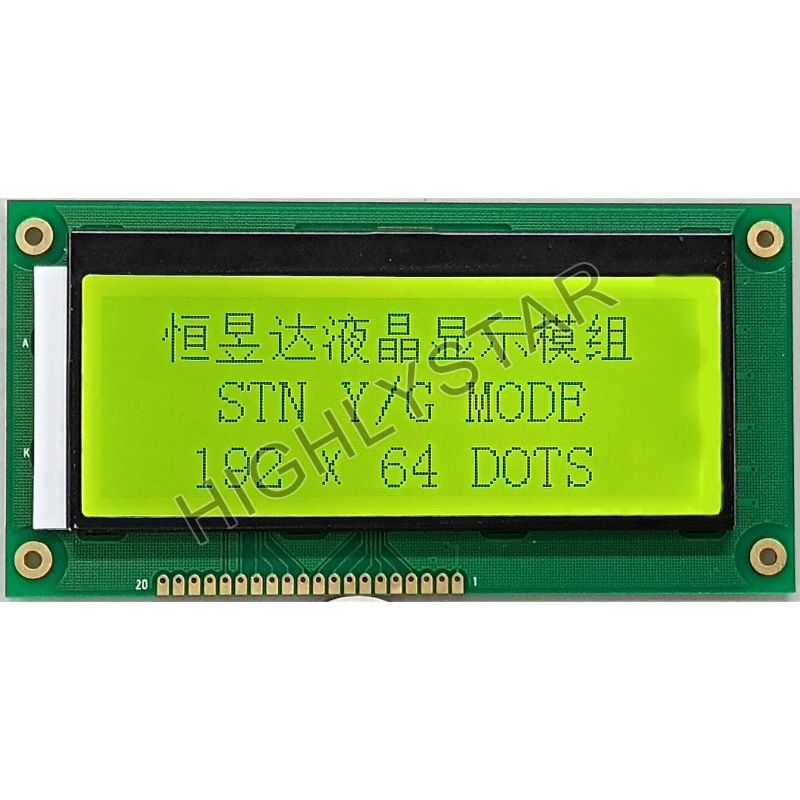

HSK-415 COG LCD

HSK-415 is a monochrome graphic LCD display module, which having 192×64 dots,  Built in with RW1092 controller IC or compatible controller. It supports SPI interface, 5.0V power supply and DC-DC convertor built in. The LED backlight default color is yellow-green, There are different LED backlights available in various colors including blue, white, green and red.

Description

HSK-415 is a monochrome graphic LCD display module, which having 192×64 dots,  Built in with RW1092 controller IC or compatible controller. It supports SPI interface, 5.0V power supply and DC-DC convertor built in. The LED backlight default color is yellow-green, There are different LED backlights available in various colors including blue, white, green and red. It is commonly found in various applications, including industrial equipment, medical devices, consumer electronics, and more, where displaying simple graphics, icons, and text is important.

Specifications

●192×64 dots

●Background: yellow-green

●backlight: LED, yellow-green

●Built-in controller RW1092 (or Equivalent)

●+5.0V power supply, DC-DC built-in

●1/65 duty cycle

●Interface: SPI

Features

COG stands for Chip-On-Glass, which is a packaging technology used in LCD displays. In COG displays, the driver electronics are directly mounted on the glass substrate of the LCD, minimizing the need for additional external components. This design approach often leads to displays with compact form factors and reduced power consumption.



With its 192x64 dot resolution, the HSK-415 display module provides a substantial amount of screen space for showcasing graphics and textual information. The built-in RW1092 controller IC or its equivalent ensures seamless communication and control of the display's pixels.



The module's SPI interface facilitates efficient data transfer between the display and a connected microcontroller or host device. This interface enables the display to receive instructions and graphical data for rendering images and text on the screen.



For powering the module, a 5.0V power supply is required. The integrated DC-DC converter further enhances the versatility of the module by managing the necessary power conversion, ensuring that the display operates optimally and consistently.



The HSK-415 monochrome graphic LCD display module finds application in various fields, including industrial electronics, consumer products, and embedded systems. Its combination of resolution, controller compatibility, SPI interface, and power management features makes it suitable for projects requiring clear graphical representation and information display.
