Replace Slurry Pump Parts
DESHI PUMP not only provide excellent slurry pump and sand pump spare parts, but also the stable value via competitive prices, fast delivery time and reliable service. According to different working applications, we provide different materials to choose, such as high chrome, rubber, polyurethane, dual-phase steel, ceramic, etc. Material code: A05, A49, A07, A61,DR55, S42, C55, .
Product Description
Why Choose DESHI PUMP?
DESHI PUMP not only provide excellent slurry pump and sand pump spare parts, but also the stable value via competitive prices, fast delivery time and reliable service. According to different working applications, we provide different materials to choose, such as high chrome, rubber, polyurethane, dual-phase steel, ceramic, etc. Material code: A05, A49, A07, A61,DR55, S42, C55, ...

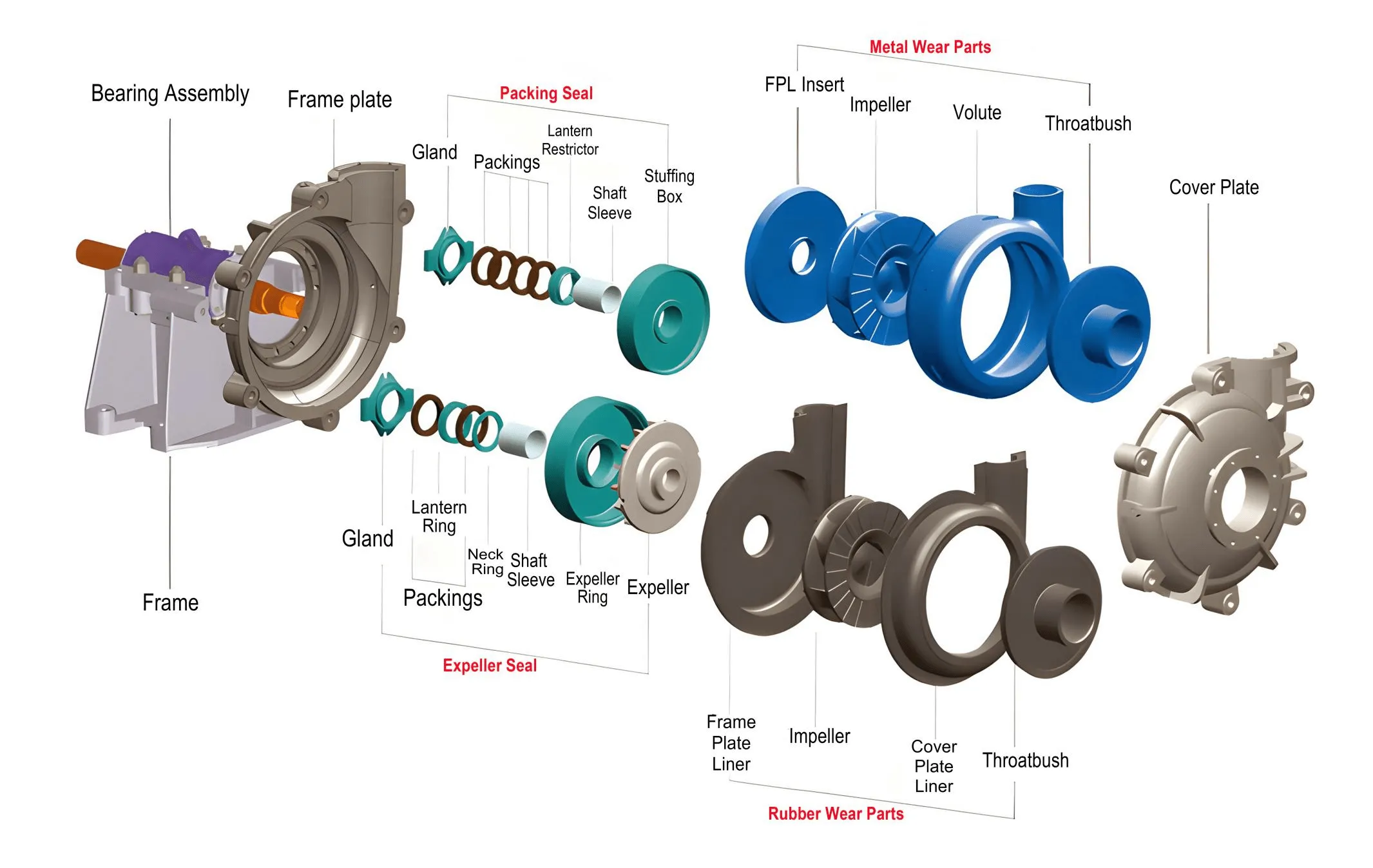

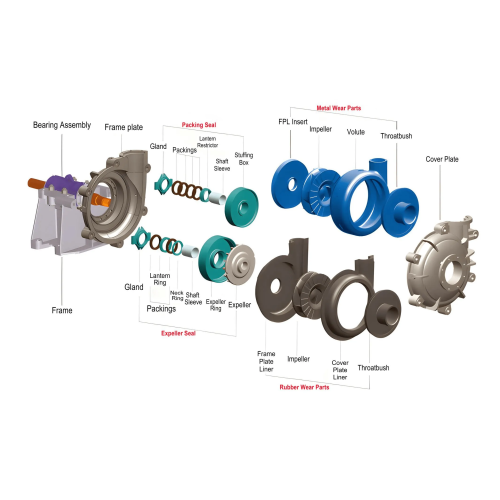

DESHI PUMP wear parts mainly include impellers, volute, throatbush, frame plate liner insert, seals, shaft sleeves, bearing assembly, etc.. Due to the high costs, slow delivery times and bad customer service, many clients use pumps, in dealing with the OEM, so we started to supply pump replacement parts that are fully interchangeable with original pump parts.
DESHI PUMP has continued to improve over the years, close cooperation with customers and solving customers' problems has allowed us to develop the latest replacement spare parts, now we can provide large quantities of replacement parts for other brands, and we are able to manufacture according to samples even without drawings Various types of parts. Our OEM/ODM services.
We will be happy to consult with you to recommend the most suitable materials for your application, such as A05, A07, A49, rubber, ceramic, etc., and provide you with qualified spare parts. All our pump spare parts have the same service life as other brands, but we offer them at a much lower price. We have most spare parts in stock and can be shipped within five days of receiving your purchase order.
The following DESHI PUMP Parts list provides the basic part number and description for most pump parts, click on one of basic part numbers or descriptions to get more details, or send mail to us directly to find the replacement parts for your pumps. Ask for a quote.
DESHI Pump Parts List
|
001 |
adjusting screw |
003 |
Base |
|
004 |
bearing housing |
005 |
Bearing Assembly |
|
008 |
Bearing Sleeve |
009 |
Bearing |
|
009D |
Bearing(Drive End) |
011 |
Clamp Washer |
|
012 |
Clamp Bolt |
013 |
Cover Plate |
|
015 |
Cover Plate Bolt |
016 |
Cover Plate Liner |
|
018 |
Cover Plate Liner |
023 |
Screw/Stud |
|
024 |
End Cover |
025 |
Shim/(Gasket) |
|
026 |
FPL Insert Stud |
027 |
End Cover Set Screw |
|
028 |
Expeller |
029 |
Expeller Ring |
|
029R |
Rubber Expeller Ring |
032 |
Frame Plate |
|
034 |
Frame Plate Blot |
036 |
Frame Plate Liner |
|
039 |
Frame Plate Stud |
041 |
FPL Insert (back liner+expeller+volute liner) |
|
044 |
Gland Assembly |
045 |
Gland Bolt |
|
046 |
Grease Retainer |
060 |
Intake Joint |
|
061 |
Labyrinth Locknut |
062 |
Labyrinth |
|
063 |
Lantern Ring |
064 |
Impeller O-ring |
|
067 |
Neck Ring |
070 |
Shaft Key |
|
073 |
Shaft |
075 |
Shaft Sleeve |
|
078 |
Stuffing Box |
079 |
Stud |
|
083 |
Throat Bush |
085 |
Cotter |
|
089 |
Bearing Seal |
090 |
Shaft Seal |
|
108 |
Piston Ring |
109 |
Shaft O-ring |
|
110 |
Volute Liner |
111 |
Packing |
|
117 |
Shaft Spacer |
118 |
Lantern Restrictor |
|
122 |
Stuffing Box Seal |
124 |
Volute Cover Seal |
|
125 |
FPL Insert Seal |
126 |
Gland Bolt |
|
132 |
Discharge Joint |
138 |
Oil Cup Seat |
|
179 |
Bearing Retainer |
217 |
Impeller O Ring |
|
239 |
Impeller Disassembly Device |
241 |
Cup Gland |
|
147 |
impeller |
|
|
Material Details
► Abrasion Resistant Cr Alloy Performance
|
Rype |
Material Code |
Material Description |
(MPa) |
ak(J/cm2) |
HRC |
Special Performance |
Application |
|
Abrasion resistant white iron |
A05 |
KmTBCr26 |
≥700 |
6-10 |
≥56 |
Anti-erosion performance <A07 with certain corrosion resistance |
For higher wear condition 5-12 of PH |
|
Abrasion resistant white iron |
A07 |
KmTBCr15Mo |
≥550 |
4-8 |
≥59 |
Best anti-erosion performance, corrosion resistance <A04, A05 |
For higher wear condition |
|
Abrasion resistant white iron |
A01 |
KmTBCr8 |
≥550 |
6-8 |
≥55 |
Anti-erision performance≈90% of A05 |
For mud pump |
|
Abrasion resistant white iron |
A11 |
KmTBCrMnMo |
≥400 |
3-6 |
38-42 |
Low-grade anti-erosion performance, low hardness, drilling tapping |
For microscale fine partical & low-grade abrasion working conditions |
|
Anti-wear & anti-corrosive iron |
A49 |
|
≥600 |
|
43-49 |
Abtu-erosion performance, corrosion stability, in low ph environment, abrasion resistance≈A03 |
For low-grade PH corrosive environment, expecially suitable fro FGD(PH≥4), Usually used for low acid enviroment |
|
Anti-wear & anti-corrosive iron |
A33 |
|
|
|
35 |
Anti-erosion performance≈A03 corrosion resistance |
To transport oxidability slurry of PH valve≥1, such as phosphogypsum, HN03, H2SO4, H3PO4, etc. |
|
|
A22 |
|
1200 |
|
45 |
Excellent erosion resistance, higher hardness |
For dredging pump casing |
|
Anti-wear cast steel |
A23 |
|
700 |
|
HB 500-600 |
Higher hardness and anti-erode |
To transport higher anti-wear & anti-corrosive working condition, such as parts of dredging pump, clean water pump, sewage pump, certain parts of slurry pump |
|
Anti-wear cast steel |
A25 |
|
|
|
HB 300-350 |
Low hardness, higher abrasion resistance, good weldable performance |
For light ecrode and wear condition such as transporting aqueous medium of small gravel |
► Rubber Parts Performance
|
Type |
Item Description |
DR26 |
DR55 |
|
Natural rubber |
Hardness |
41±4 |
52±3 |
|
Natural rubber |
300% stretching strength N/Cm2 |
≥190 |
≥400 |
|
Natural rubber |
Breaking strengh N/Cm2 |
≥2000 |
≥2200 |
|
Natural rubber |
Elongate break % |
≥500 |
≥500 |
|
Natural rubber |
Pull apart permanet deformation % |
≥30 |
≥25 |
|
Natural rubber |
Pull strength:μg/Cm2 |
≥40 |
≥40 |
Our Promise- High Quality & Professional Service
♦ Quality Control – DESHI PUMP insist the very strict inspection policy before delivery. The exacting tolerances and engineering standards are necessary, very excellent quality will make sure no downtime and stable working performance.
♦ Fast Delivery – DESHI PUMP aims to provide the reliable pumps, parts and service to our clients quickly and effectively. So large pump parts stock stands ready for your service always.
♦ Competitive Pricing– DESHI PUMP offers the best competitive price for your projects.
♦ Reliable Service- 7x24 fast response, free trial use and carefree refund or exchange if quality problems happens.
Your satisfaction is our most priority. We appreciate for your feedback and are always looking for opportunities to improve our service.
