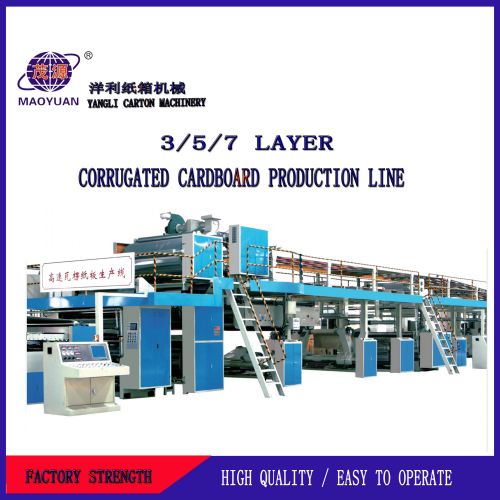

MS Corrugated Cardboard Production Line

Working Principle

Tile line is the abbreviation of corrugated cardboard production line.It is a streamline line consisting of pressing, corrugating, gluing, bonding, grading, paper making, and code output. Such as single corrugated paper production line is made of web frame, single- sided corrugated cardboard machine, composed of rotary paper cutting unit, using web material and potato or corn starch adhesive, single-sided corrugated board continuous production and cut into the required specifications, production of cardboard no longer dry or dry, and glue machine or laminating machine with the use of, can produce more than three layers of corrugated cardboard.

Corrugated Equipment Details

Hydraulic reel stand

Structural characteristics:
use the full hydraulic drive to complete the base paper clamping, loosening, moving to the middle, left and right translation, and other actions, the base paper lift using the hydraulic drive.
brake adjustment adopts a multi-point brake system.
each paper rack with two paper cars from both sides can be paper at the same time.

Corrugated Cardboard Machine For Sale Technical parameters：
1. range： maximum 1400 mm minimum 1000 mm
2. diameter： maximum 1300 mm minimum 350 mm
3. paper frame spindle diameter：￠240 mm
4.  gas source working pressure (MPA):0.4-0.8 MPA
5. Equipment Size： Lmx4.3*Wmx1.8*Hmx1.4
6. unit weight： maximum Kg 4000

Hydraulic system parameters：
1. Working pressure (MPA):16-18 MPA
2. lift hydraulic cylinder:￠100×440 mm
3.  Tightening hydraulic cylinder：￠63×1300 mm
4. Hydraulic station motor power ：3 KW --380V --50Hz
5. Solenoid valve voltage： V 50Hz 220
