RO4835 High Frequency PCB Double Layer 60mil 1.524mm Rogers 4835 PCB with Immersion Gold
Product Description
Min Order Quantity：1 Piece
Supply Ability：60000 pieces per month
Port：Shenzhen
Delivery Lead Time：10 working days
Country/Region：China
City：Shenzhen
Product Attributes
- - Model Number BIC-200-V1.0
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Color White
- - Base Material RO4835
- - Board Thickness 1.6mm
- - Copper Thickness 1OZ
- - Min. Hole Size 0.4mm
- - Min. Line Spacing 4mil
- - Min. Line Width 4mil
- - Surface Finishing ENIG
- - Related Keywords RO4835 PCB, Rogers PCB, HF PCB, RF PCB, Antenna PCB
Description by Manufacturer
RO4835 High Frequency PCB Double Layer 60mil 1.524mm Rogers 4835 PCB With Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description

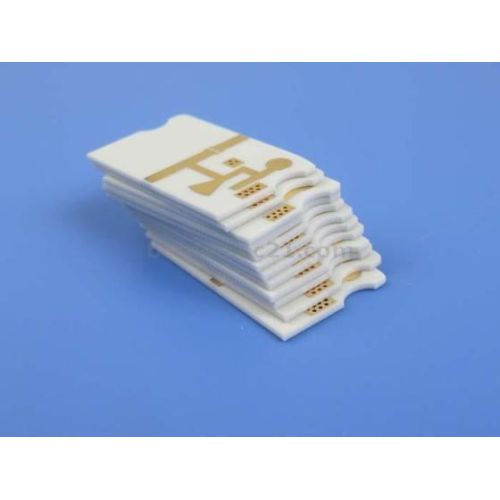

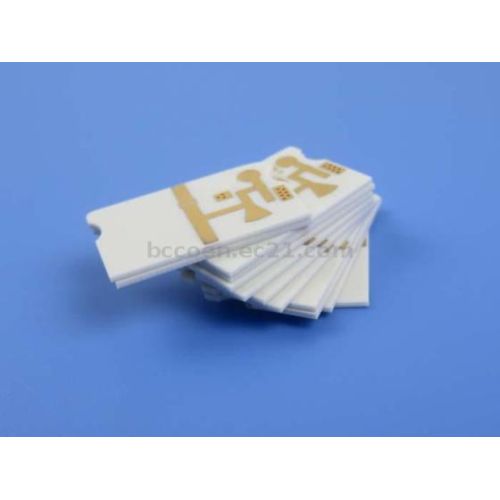

This is a type of Rogers high frequency PCB built on RO4835 laminates, double layers with signal layer on top side, shielding layer on bottom side. It is plated with immersion gold, no solder mask or silkscreen. It’s fabricated using 60mil substrates, 0.5oz copper starting. The boards are manufactured as per IPC Class II standard. All of the boards are 100% electrical tested before shipment.
PCB Specifications
| PCB SIZE | 12 x 26mm=1up |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
| RO4835 1.524mm | |
| copper ------- 17um(0.5 oz) + plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 110 mil / 110 mil |
| Minimum / Maximum Holes: | 1.0 mm / 1.0 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 10 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4835 1.524mm |
| Final foil external: | 1.0 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 1.6 mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold, 86.2% |
| Solder Mask Apply To: | N/A |
| Solder Mask Color: | N/A |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 1.0mm. |
| FLAMIBILITY RATING | 94V-0 |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
About Us
We’re an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.
We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.
Our Advantages
1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;
2. PCB manufacturing is strictly as per required specifications;
3. Meeting your PCB needs from prototype to mass production;
4. Any Layer HDI PCBs;
5. 16000㎡ workshop; 8000 types of PCB's per month;
6. Quick CADCAM checking and free PCB quotation;
7. Eligible products rate of first production: >99% Customer complaint rate: <1%
8. More than 19+ years of high frequency PCB experience;
9. IPC Class 2 / IPC Class 3;
10. Prototype PCB capability and Volume Production capability;
Our PCB Capability (2022)
| Parameter | Value |
| Layer Counts | 1-32 |
| Substrate Material | RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc. |
| Maximum Size | Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm |
| Board Outline Tolerance | ±0.0059" (0.15mm) |
| PCB Thickness | 0.0157" - 0.3937" (0.40mm--10.00mm) |
| Thickness Tolerance(T≥0.8mm) | ±8% |
| Thickness Tolerance(t＜0.8mm) | ±10% |
| Insulation Layer Thickness | 0.00295" - 0.1969" (0.075mm--5.00mm) |
| Minimum Track | 0.003" (0.075mm) |
| Minimum Space | 0.003" (0.075mm) |
| Outer Copper Thickness | 35µm--350µm (1oz-10oz) |
| Inner Copper Thickness | 17µm--350µm (0.5oz - 10oz) |
| Drill Hole(Mechanical) | 0.0079" - 0.25" (0.2mm--6.35mm) |
| Finished Hole(Mechanical) | 0.0039"-0.248" (0.10mm--6.30mm) |
| DiameterTolerance(Mechanical) | 0.00295" (0.075mm) |
| Registration (Mechanical) | 0.00197" (0.05mm) |
| Aspect Ratio | 12:1 |
| Solder Mask Type | LPI |
| Min Soldermask Bridge | 0.00315" (0.08mm) |
| Min Soldermask Clearance | 0.00197" (0.05mm) |
| Plug via Diameter | 0.0098" - 0.0236" (0.25mm--0.60mm) |
| Impedance Control Tolerance | ±10% |
| Surface Finish | HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc. |
Price
- Price US$ \ 9.99 ~ 99.99 / Piece
Packaging & Shipping
- - Packing100pieces
- - Packaging Size36 x 36 x 20 ( Centimeters)
- - Package Weight 12 ( Kilograms )
- - Delivery Lead Time10 working days
- - Minimum Order 1 Piece
- - Supply Ability60000 pieces per month
- - Total quantity in StockOver 5000
- - Delivery PortShenzhen
- - HS Code8534009000
- - Shipping Career

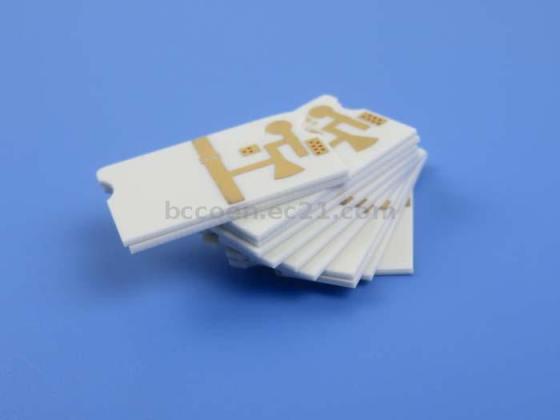

Product Image
