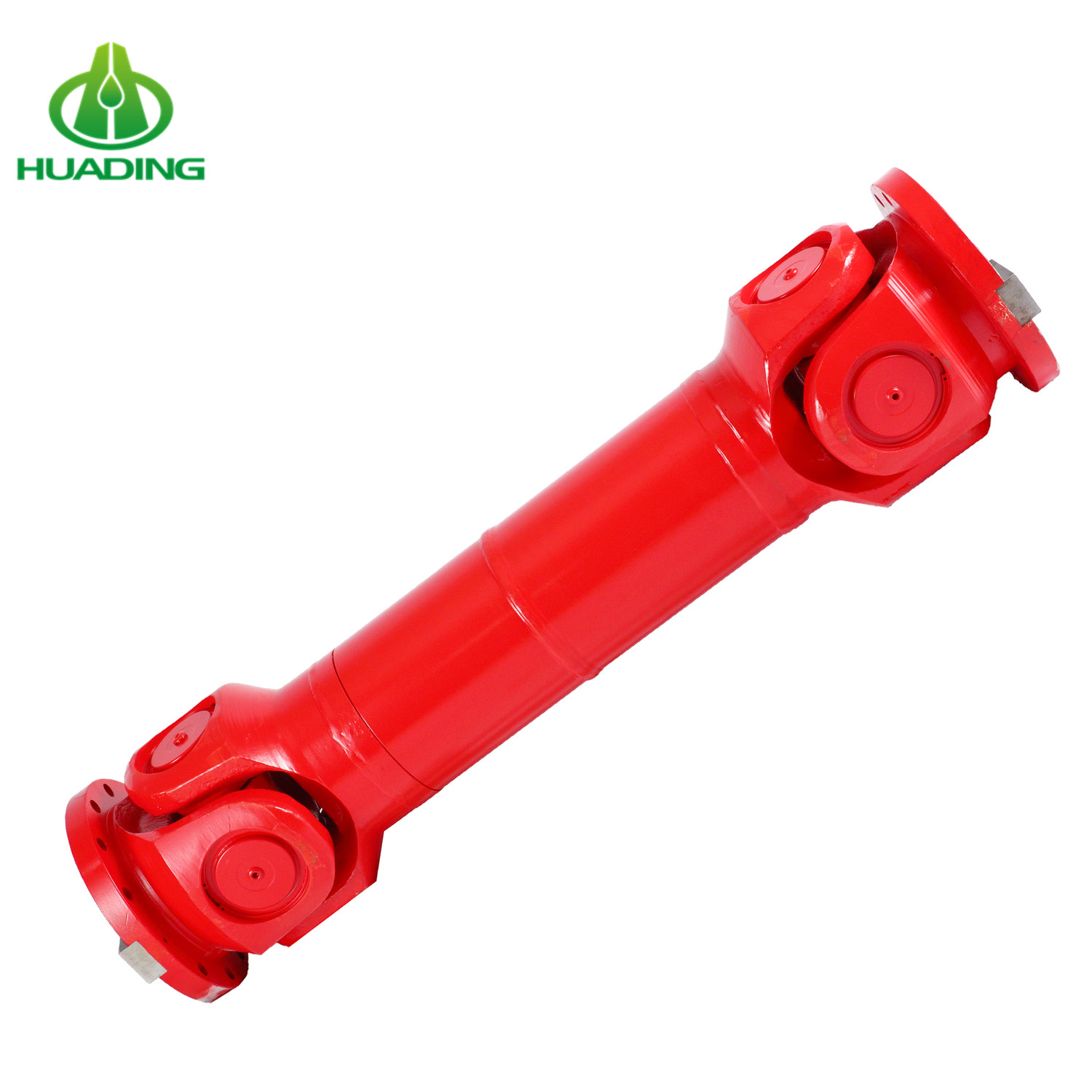

SWC-BH Type Universal Joint Shafts

Cardan Shafts-Universal Joint Shafts

SWC-BH Cardan shafts is a standard welded shaft type with length compensation. The characteristics of their structure can not in the same axis angle or larger axial movement of two large equiangular continuous rotary speeds, and reliably transfer torque and motion.

HUADING universal joint shafts are used in steel mill machinery, paper machinery, straighteners, ship propulsion, pumps, amusement rides, and wastewater treatment.

Universal Joint Shafts Features:

1. We have a very complete supply chain system, and can provide over 1000 different spare parts.

2 . Elastomer connecting in the middle;

3. Can absorb vibration, compensates for radial, axial and angular deviation;

4. Oil resistance and electrical insulation;

5. Have the same characteristic of clockwise and anticlockwise rotation;

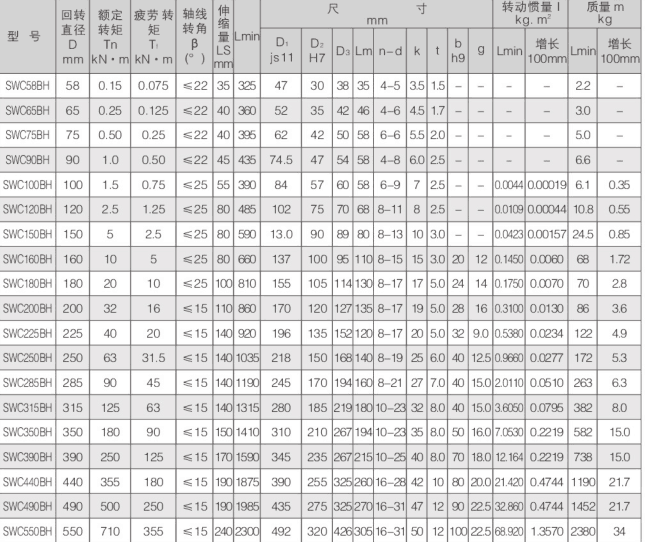

Model:

· Tactical diameter: 58mm - 550mm

· Norminal torque: 0.15kN. M - 710kN. M

· Axis angle: ≤ 22, 25, 15 degrees

· Connection: Keyway or Bolts

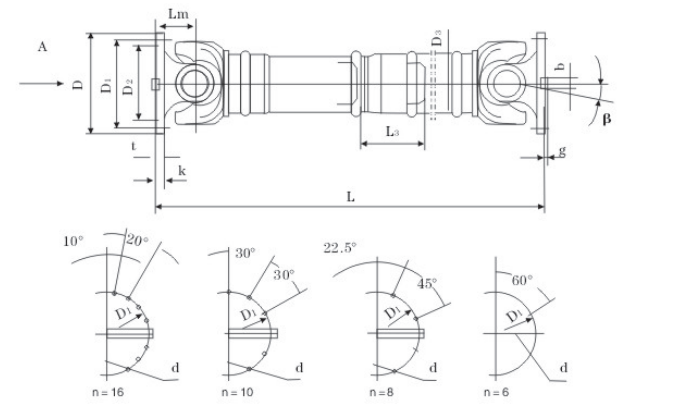

Note: D=Tactical Diameter; Tn=Norminal Torque; Tf=Alternating Fatigue Torque; β=Axis Angle; Ls=Telescopic Length; Lmin=Compressed Length;

Cardan Shafts Types:

 We can supply you with SWP, SWC, WSD, and WS universal joint shafts as follows:

● Welded shaft type with length compensation/ expansion joint;

● Short type with length compensation/ expansion joint;

● Short type without length compensation/ expansion joint;

● Long type without length compensation/ expansion joint;

● Double flange with length compensation/ expansion joint;

● Long type with big length compensation/ big expansion joint;

● Super Short type with length compensation/ expansion joint;

Our Services:
1. Design Services
Our design team has experience in Cardan shafts relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2. Product Services
Raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3. Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4. Research & Development
We usually research the new needs of the market and develop new models when there are new cars in the market.

5. Quality Control
Every step should be a special test by Professional Staff according to the standard of ISO9001 and TS16949.


FAQ
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks in PDF or AI format.

Q 3:How long is your delivery time?
Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples? Is it free or extra?
Yes, we could offer the sample but not for free. Actually, we have a very good price principle, when you make the bulk order the cost of the sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.

Q 6: What is the MOQ?
A: Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Q 9: What's your payment?
A:1) T/T. 2) L/C
