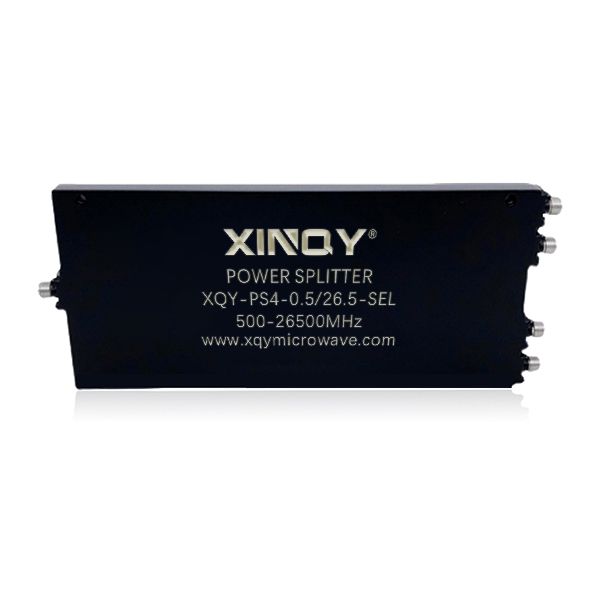

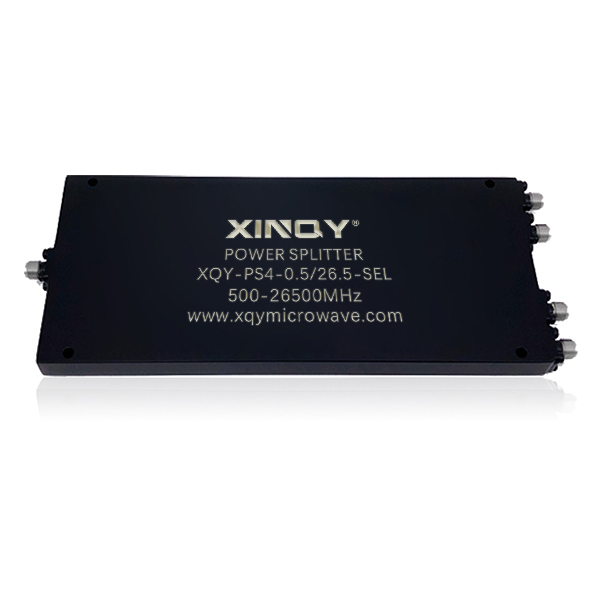

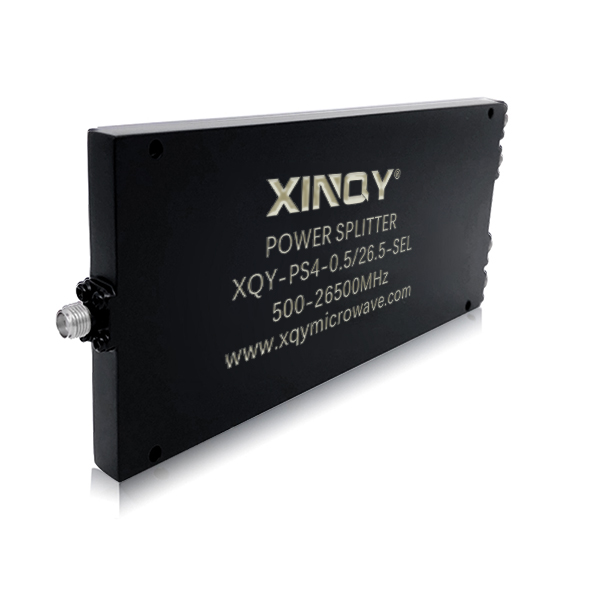

4 Way SMA Power Divider/Combiner 500MHz-26.5GHz
● Model: XQY-PS4-0.5/26.5-SEL ● 4-Way / SMA-Female ● 50Ω / 0.5-26.5GHz ● Customizable Specifications ● Click the “Download” button to download the datasheet
Product Description
Description
XINQY Enterprise carries a wide selection of power dividers to fit your needs. These components are essential in many systems,allowing the combination of multiple signals or splitting of a single signal into multiple signals with equal magnitude and phase.
XINQY Enterprise’s come with excellent performance featuring low insertion loss,low vswr,high isolation and excellent amplitude and phase balance.They are available in both narrow and broad bandwidths with a variety of connector types such as N-Type, SMA,and 2.92mm. Please see Parameters tables for details!
For any enquiries or any customization,please send email to and we will reply to you as soon as possible.
4 Way SMA Power Divider/Combiner 0.5-26.5GHz
Features Applications
• • Radar
• 500-26500 MHz Frequency Range • Satcom
• Insertion Loss ≤5.2dB • Aerospace/Aviation
• Isolation: Typ.26dB • Test and Measurement
• Combined port VSWR: Typ.1.28 • Military Applications
• Distribution port VSWR: Typ.1.28 • Wireless Communications
Electrical Specifications
| Frequency Range | 500-26500 MHz |
| Insertion Loss | ≤ 5.2 dB (Excluding theoretical loss 6.0 dB) |
| Combined port VSWR | Typ.1.28 / Max.1.6 |
| Distribution port VSWR | Typ.1.28 / Max.1.6 |
| Isolation | Typ.26dB / Min.16dB |
| Amplitude Balance | ≤ 0.4dB |
| Phase Balance | ±6° |
| Impedance | 50 Ohms |
| Port Connectors | SMA-Female |
| Power Rating | Splitter 20W; Combiner 1W |
| Operation Temperature | -45℃ ~ +85℃ |
| Surface Finishing | Black Paint |
| Outline Dimensions |
158.5*56.5*12.7 (mm)
|
| Weight |
330 (g)
|

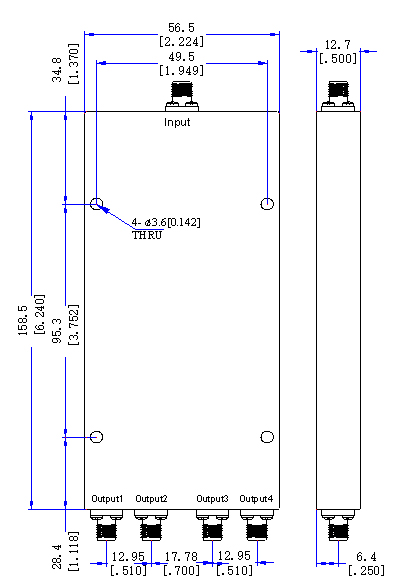

Outline Dimensions（mm/inch）:
