Welljets W5100 Small Character Continuous Inkjet Printer

Description by Manufacturer

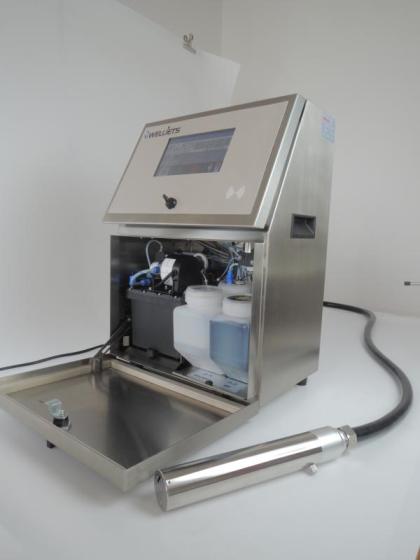

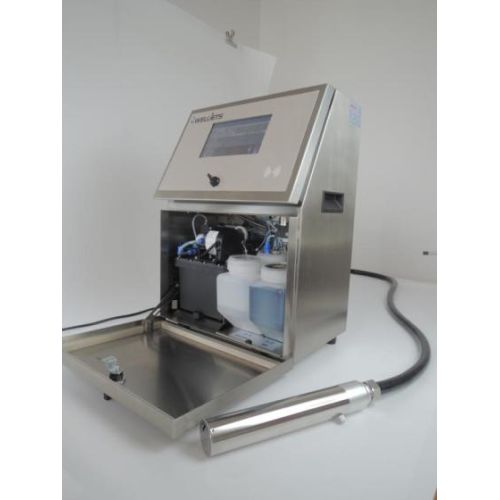

Product Image

W5100 inkjet printer, It is an industrial printer, has been designed with an emphasis on reliability and reduced running costs. It adopts the latest Linux designed operation software and the most advanced reliable hydraulic pipeline system is adopted.
Adopting the advanced technologies, it integrates the stable performance, convenient operation and easy use, wide application and reasonable use cost perfectly to provide you with high-quality service, so that you can easily control and obtain your inkjet needs.




Advantages & Benefits:
S Up to 5 lines of print
S Variable nozzle size optional based on products
S Line speeds up to 879 ft/min (268m/min)
S Wireless connectivity to Windows tablet & Mobile
S Simple maintenance with quick disconnect replacement components
S Wide application and reasonable use cost


Welljets W5100 lines inkjet printer features:
S Easy to learn and Easy to use interface, base on the classic interface layout original from Germany with strict logic
S Durable performance based on long time tested technology from Cambridge technology
S 32-bit embedded Linux operating system, 5 CPU chips,.
S Durable gear pressure pump with overload protection
S USB flash disk is convenient for saving / loading printing information and configuration parameters
S Ink and solvent bottle detector to ensure smooth operation
S Periodic maintenance pop-up window
S 7-inch TFT color screen, QWERT international standard smart phone input
S CE / ISO 9001 certification


Printing Speed
S Single row 5x5 dot matrix, 268 M / min (679 ft / min)
S Single line 7x5 dot matrix, 170 M / min (557 ft / min)
S Double row 7x5 dot matrix, 72 m / min (236 ft / min)
S Three row 7x5 dot matrix, 39 m / min (128 ft / min)
S Four row 7x5 dot matrix, 22 m / min (72 ft / min)
S Font Matrix:
S 1 line:5X5,7x5, 9x7, 11x7, 15x11,23x15, 32x24
S 2lines:5x5, 7x5, 9x7, 11x7, 15x11, 23x15
S 3lines:5x5, 7x5, 9x7, 11x7, 15x11
S 4lines:5x5, 7x5, 9x7, 11x7
S Barcode Types:
S Code39, Code128, EAN128, EAN-8, EAN-13,
S UPC-A&E,QR code, DataMatrix
S Message Height: Minimum 1mm~20mm(0.04 ~0.8inc, variable depends on fonts
S Distance between head to object
S Optimum:10-15mm(0.4-0.6in)
S Range::0.5mm(0.2in)-25.4mm(1in)
S Input Language & Interface:
S English, Chinese, Arabic, Persi, Latin, Russion etc.
S English, Chinese,Arabic, Vietnam,Thailand,persi,france, germany, Korea, Spainish etc.
S Storage of messages:
S 1000pcs complicated message
S Reservoir
S 1500ml ink & solvent reservoir.
S Optional:
S Remote control software (win 10), RJ45 or Wi-Fi
S Encoder & Sensor


Main Application Fields:
It provides superior quality small characters on a variety of substrates: porous, non-porous, smooth textured, curved, concave and more.
It offers a reliable ,yet cost effective solution for virtually any small character, primary package coding applications such as plastic bags, paper bags, paper, glass, mental, medicine box, cartons, electronic products, labels, Nylon, ABS/PVC/PE, rubber, resins, ceramics etc.
