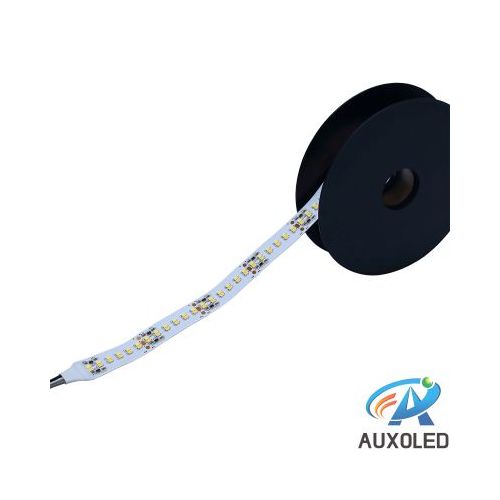

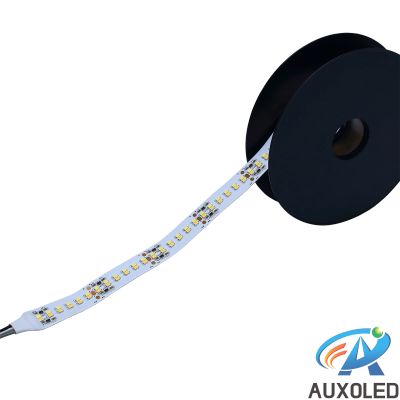

DC24V 43.2W Constant Current SMD2835 Flexible LED Backlight Strip
Product Description
Payments：T/T, Western Union
Delivery：10-12 Days
Origin：Shenzhen, China
Packing：Export Safe Packing
Inspection：CE, RoHS
Samples：Charge
Remarks：AUXOLED
Item Name: DC24V 43.2W Constant Current SMD2835 Flexible LED Backlight Strip
Item No.: FPC20-1000-240LED2835-1P-24V
Brand Name: AUXOLED
Specific Parameters:
Product Dimensions: W20*L1000*H1.5 (mm)
Light Source: 240PCS SMD2835 LEDs
Chip Brand: Epistar
Beam Angle: 120°
CRI: >80
Input Voltage: DC24V
Power Consumption: 43.2W
White Beaming Color Temperature: 2700-3000K (Warm White), 4000-4500K (Netural White), 6000-6500K (Cold White)
Luminous Flux: 22-24LM / LED
PCB Material: FPC
IP Class: IP20 / IP65 / IP67 / IP68
Working Temperature: -20\u2103~45\u2103
Working Lifespan: 50,000 Hrs
Detail Form:
| Input Voltage | CCT | Beam Angle | CRI | IP Class |
| DC12V / DC24V | 2700-6500K | 120° | >80 | IP20/IP65/IP67/IP68 |
| Item No. | Product Dimensions | Rated Power | Light Source | Luminous Flux |
| FPC10-1000-CC30LED2835-1P-12V | W10*L1000*T1.5 (mm) | 6W | 30PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC36LED2835-1P-24V | W10*L1000*T1.5 (mm) | 7.2W | 36PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC60LED2835-1P-24V | W10*L1000*T1.5 (mm) | 13W | 60PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC70LED2835-1P-24V | W10*L1000*T1.5 (mm) | 13W | 70PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC112LED2835-1P-24V | W10*L1000*T1.5 (mm) | 19.2W | 112PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC120LED2835-1P-24V | W10*L1000*T1.5 (mm) | 21.6W | 120PCS SMD2835 | 22-24LM / LED |
| FPC10-1000-CC144LED2835-1P-24V | W10*L1000*T1.5 (mm) | 21.6W | 144PCS SMD2835 | 22-24LM / LED |
| FPC20-1000-CC240LED2835-1P-24V | W10*L1000*T1.5 (mm) | 43.2W | 240PCS SMD2835 | 22-24LM / LED |
Advantages:
Use Imported Epistar Chip LEDs, High Brightness and Excellent Quality, Super Long Working Lifespan
Can be Used for Both Decoration and Illumination Indoor (IP Class: IP20) and Outdoor (IP Class: IP65/IP67/IP68)
FPC RA Copper Base, Flexible and Good Ductility, Not Easy to Damage; Optional PCB Color: Yellow, Black and White
Using High Quality Silicone Glue for IP65 Waterproof Sealing, Crystal Clear, Less Sticky Fingerprint and Dust, Good Ductility and Sealing, Will not Turn Yellow in 3 years, Not Easy to Break, Smooth and Elegant Sealing Surface
With Imported Adhesive 3M Tape (Model No.: 300LSE) on the Back of the LED Strip, Better Strength and Viscosity
Using Eco-friendly Reel and Anti-static Ziplock Bag for Packing, 5 Meters per Reel; Can Pack as per Customers' Requirements as Well
DC12V or DC24V Low Input Voltage, Safe and No Hidden Dangers
No Flicker, No Radiation, Environmental Friendly and Energy Saving
Applications:
Supermarket, Shopping Centre, KTV, Architecture, Theatre, Cinema, Exhibition Hall, Cabinet, Kitchen, Counter, Corridor, Cafe, Hotel, Park, Advertising Backlight, Accent Lighting, Sign Illumination, Cove Lighting, etc.
Certificates:
CE, RoHS
Warranty:
2 Years
