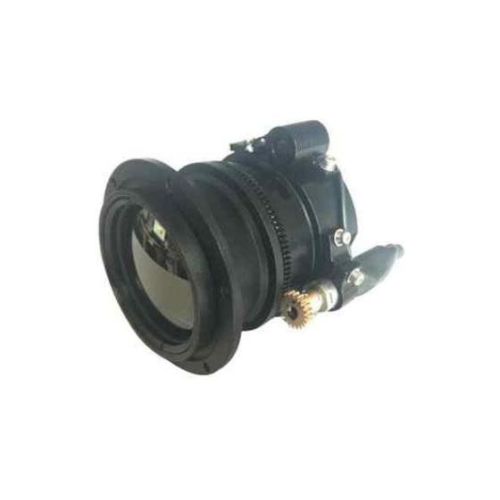

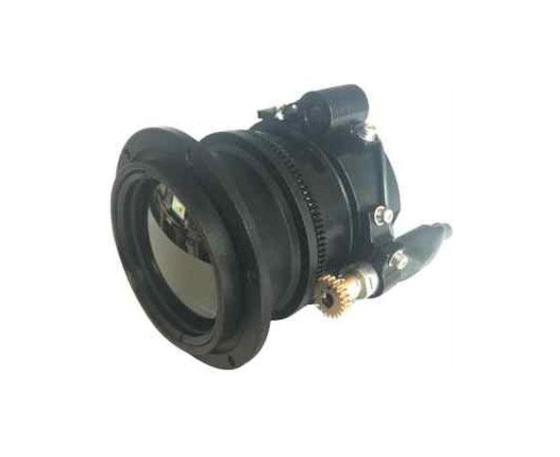

Thermal Lens
Product Description
Min Order Quantity：1 Acre
Country/Region：China
City：Yantai
Product Attributes
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Related Keywords underwater rov for sale
Description by Manufacturer
The thermal module from Walson is based on an uncooled/cooled microbolometer infrared focal plane vox sensor with 12/17µm pixel. With the help of these security camera accessories, you can improve your image quality, observe small targets more clearly, and extend your detection distance. The whole system of Walson thermal lens has high sensitivity with NETD that can reach 20mk and good fog penetration. It also runs with an advanced image noise reduction process, DDE(digital image details enhancement) function, outputting hot white/ hot black/ pseudo color image for various use.
The thermal camera lens is operated with low power consumption and supports standard RS485 interface control, analog/IP video signal output. It also can be quickly started and has stable performance.
Parameters Of Thermal Lens
| WLS-LTZ Specification | ||||
| LTZ75 | ||||
| FOV | 320*240 | 640*480 | 640*512 | |
| 17μ | Width | 15.5 | 23.7 | 4.7 |
|
| Narrow | 5.2 | 8 | 10.6 |
| 12μ | Width | 11 | 16.8 | 3.3 |
|
| Narrow | 3.7 | 5.6 | 7.5 |
| Optical Feature | ||||
| Focal Length | 25~75mm | |||
| F/# | 1.0 | |||
| Average Transmission | ≥80% | |||
| Back Focal Lens | 18.54mm | |||
| Focus Type | Motorized Adjustable Zoom | |||
| FOV | 24.55°*19.75°~8.29°*6.64° | |||
| Coating | DLC | |||
| Other Features | ||||
| Weight | 1.2kg | |||
| Outer Size | L124mm, Ф115mm | |||
| Operating Temp | -40~+60℃ | |||
| Spectral Range | 8~12μm | |||
| IP | IP67 |
| LTZ100 | ||||
| FOV | 320*240 | 640*480 | 640*512 | |
| 17μ | Width | 15.5 | 30.8 | 31.5 |
|
| Narrow | 3.9 | 7.8 | 8 |
| 12μ | Width | 11 | 21.9 | 22.4 |
|
| Narrow | 2.7 | 5.5 | 5.6 |
| Optical Feature | ||||
| Focal Length | 25~100mm | |||
| F/# | 1.0 | |||
| Average Transmission | ≥80% | |||
| Back Focal Lens | 17.41mm | |||
| Focus Type | Motorized Adjustable Zoom | |||
| FOV | 24.55°*18.54°~6.23°*4.67° | |||
| Coating | DLC | |||
| Other Features | ||||
| Weight | 2.3kg | |||
| Outer Size | L154.6mm, Ф152mm | |||
| Operating Temp | -40~+60℃ | |||
| Spectral Range | 8~12μm | |||
| IP | IP67 |
Details Of Thermal Lens
Integrated structure design, flexible deployment, built-in antenna, easy to use
4G dual-mode network access wireless network video binding transmission, downward compatible with 3G network
local support dual TF card storage, single card support ≥ 64g
One button anti touch switch, supporting brightness display
The built-in WiFi module supports WiFi hotspot direct connection to smartphones and tablet preview video
The device supports a built-in lithium battery and can work at full load for more than 6 hours
The protection level is IP66
The GPS / BeiDou dual-mode positioning function
support smartphone monitoring and tablet PC monitoring and viewing
Shandong Walson Electronic Technology Co., Ltd. is a high-tech enterprise. We provide thermal imaging security camera , infrared zoom lens, thermal infrared lens, ir camera lens, thermal imaging lens, infrared camera lens, ir lenses , good cheap surveillance camera and etc. Want to know more? Please contact us.
Price
- Price US$ 50000 / Acre
