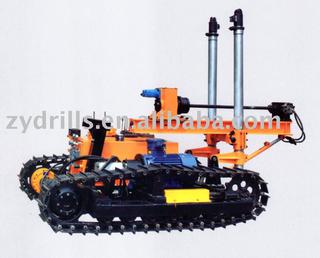

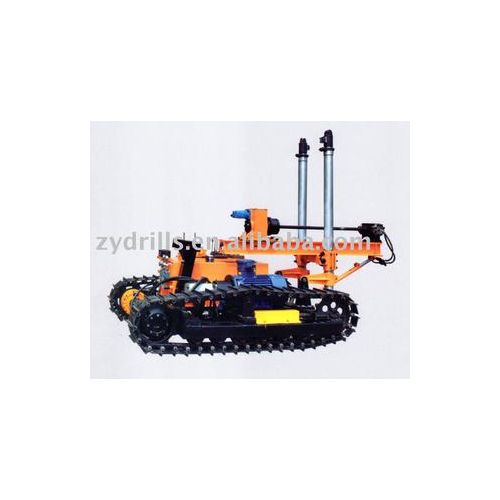

CMS1-680/200 Crawer Long Hole Drill Jumbo in underground coal mine
Product Description
Specifications
Description
1.Crawler drill rig
2.200meter long hole drill rig
3.Max. drilling hole diameter 120mm
4.Explosion-proof
5.Rorary drill
rawler drill rig
Crawler Long Hole Drill Jumbo CMS1-680/200 is mainly used to drill horizontal long hole gas and water drainage hole, cable hole, geologic exploration hole in the underground coal mine or ground and tunnel horizontal drilling construct. Crawler is fitted in to improve flexibility and maneuverability and reduce labour intensity based on Hydraulic Long hole Rotary Drill Rig ZYJ-680/200.
Whole Machine Basic Parameter
Item | Unit | Value |
Drilling Boom Quantity |
| 1 |
Suitable Roadway Section | m2 | 20 |
Measurement (in running) | L*W*H mm | 2600*1600*2900 |
Min. Turning Radium | mm | 6000 |
Total Weight | kg | 2000 |
Drilling Hole Diameter | mm | 65-120 |
Flushing Water Pressure | MPa | 0.6-1.2 |
Max. Noise | dB(A) | 92 |
Nominal Torque | N.m | 680 |
Nominal Rotary Speed | r/min | 200 |
Working Pressure | MPa | 17/8 |
Working Flux | L/min | 95/23 |
Suitable Drill Rod Diameter | mm | 42 |
Measurement | L*W*H mm | 2900*1600*1660 |
Propulsion Mode |
| Cylinder Propulsion |
Propulsion Stroke | mm | 1300 |
Propulsion Force | kN | 9(1st Cylinder)/10(2nd Cylinder)/14(3rd Cylinder) |
Retract Speed | mm/min | 8000 |
Travelling Mode |
| Crawler |
Travelling Section Basic Parameter
Item | Unit | Value |
Driving Mechanism Type |
| Hydraulic motor drive |
Travelling Capacity | mm/min | 1800 |
Climbing Capacity |
| 20° |
Travelling Mechanism Feature |
| Built-in hydraulic motor type travelling reducer |
Track Shoe Width | mm | 350 |
Working Pressure | MPa | 20 |
Working Flux | L/min | 65 |
Working Pressure | MPa | 18/9 |
Hydraulic Power Pack Basic Parameter
Item | Unit | Value | |
Max. Working Flux | L/min | 100/25 | |
Motor | Nominal Power | kW |
|
Nominal Voltage | V |
| |
Nominal Current | A |
| |
Nominal Rotary Speed | r/min |
| |
Oil Pump | Type |
| Dual-link Gear Pump |
Nominal Pressure | MPa | 20 | |
Oil Tank | Volume | L | 300 |
