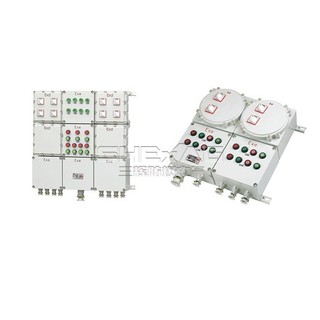

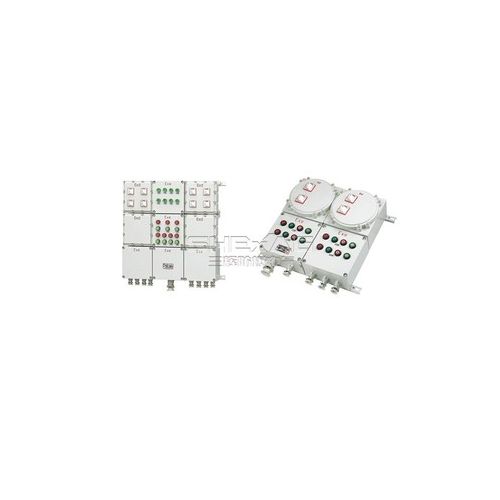

dust proof explosion-proof control box (II B,II C,DIP) SH-KZX

dust proof explosion-proof control box (II B,II C,DIP) SH-KZX

Dust Explosion-Proof Appliance

Application

1. Hazardous: division 1&2, or 20, 21 &22

2. Explosive gas atmosphere: class II A II B II C or inflammable dust environment.

3. Indoor or outdoor(IP65,IP66)

4. Temperature class: T1~T6

5. Widely using in the fields of oil, chemical industry, space flight, war industry and so on.

Features:

1. Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance.

2. This product is in the structure of combined modulation, the switch case is flame-proof type, and the bus bar case and connecting case are increased safety type. Each branch circuit can be assembled freely according to the user's requests.

3. Built-in components can be assembled according to user's requirements.

4. It can be assembled specially according to user's requirements.

5. Panel control or remote control or panel control and remote control.

6. With protection functions of overload and short-circuit.

7. Be used to control multi motors, protect each branch circuit by circuit breaker, and as power for illumination or meter.

8. Inlet: 3P+N+PE, Outlet: 3P+N+PE.

9. Steel pipe, explosion-proof flexible tube, and cable wiring.
