Mylonite ultra fine powder grinding machine, grinding mill for sale

Product Description

Specifications

Description

Introduction of ultra fine powder grinding mill

Ultra fine powder grinding mill is made by Clirik in 2013. It's a professionally processing mylonite. The granularity of the finished fineness can be adjusted bewteen 325mesh to 3000mesh. They are five types of mylonite ultra fine grinding machine: HGM80, HGM90, HGM100, HGM100A, HGM125.

Features of ultra fine powder grinding mill

● High Efficiency

Under the same finished final size and the same motor power, the capacity of Fine roller mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

● Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.

● High safety and reliability

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

● High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

●Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

●Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.

Work Principle of ultra fine powder grinding mill

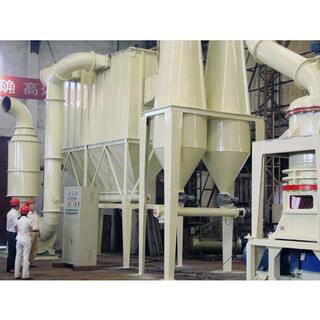

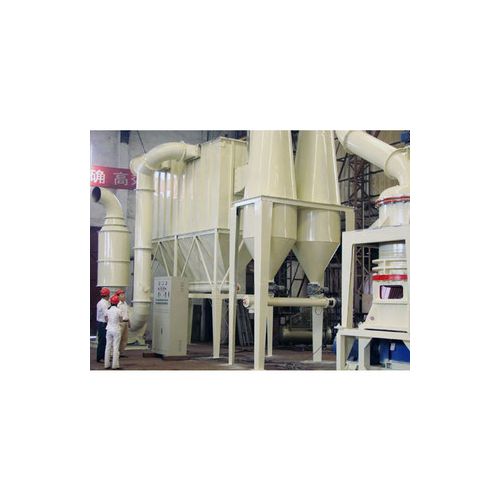

HGM series ultrafine grinding millmainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

Main specification of ultra fine powder grinding mill

Model	HGM80	HGM90	HGM100	HGM125	HGM1680L
Ring Diameter(mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3-4	4	4	4
Roller Number(PCS)	18-21	24-29	28-36	30-44	30-40
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤10	≤10	≤15	≤15	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
*Outlet Size LWH (m)*	13.946.2	14.74.87.2	184.68.6	14910.25	26.37.511.9

Q&A

1. What advantages does your micro powder machine, stone mill, powder grinding mill have?
—The main advantage of our micro powder machine, stone mill, powder grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your micro powder machine, stone mill, powder grinding mill?
---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality

Inquiry Service

More details we needed for sending you more suitable quotation,

1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?

Any inquiries of our machine, stone mill, powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.

Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.

We look forward to your inquiries!
Shanghai Clirik Machinery CO., LTD.

Terms

FOB Price:	35000
Minimum Order:	1
Port:	shanghai
Payment Terms:	all
