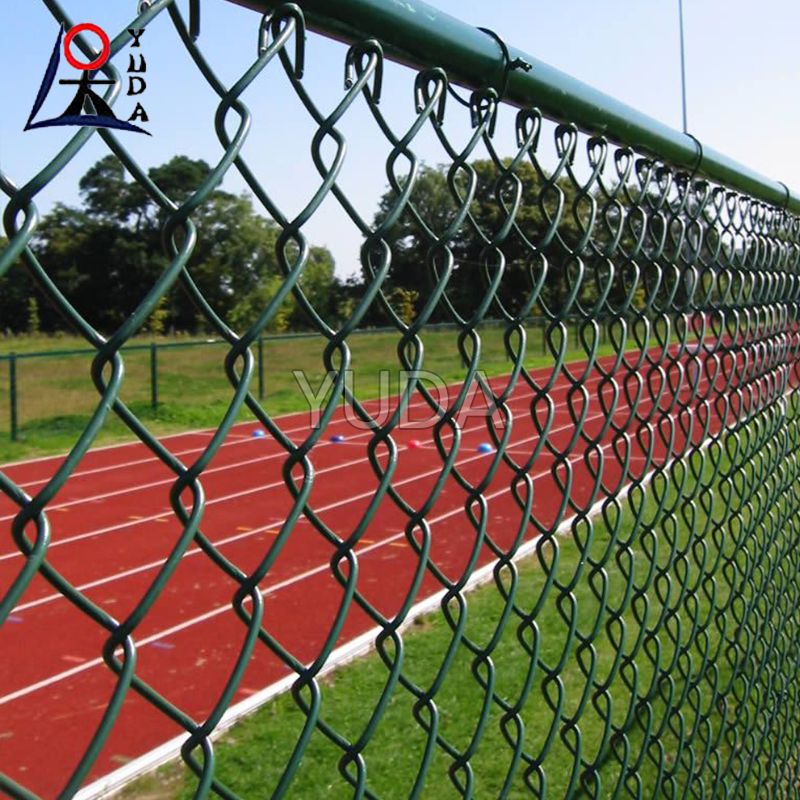

PVC Coated Chain Link Fence

PVC Coated Chain Link Fence

Product Description

Chain link fence , is made from galvanized or pvc coated iron wire, to fix with posts, brace and fittings to build a chain link fence system in the park, tennis court, airport and other places. Also can be used for animal breeding. It is mainly divided into galvanized, PVC coated with easy construction and maintenance, bright colors, which are the preferred products to beautify the urban environment.

Material: high quality low carbon steel wire, stainless steel wire, aluminum wire.

Weaving and features: hook made; woven simple, beautiful and practical.

Uses: for the stadium, parks, rivers, highways, railways, airports, construction, residential security and so on.

PVC Coated Chain Link Fence

Specification:

Mesh: 40mm, 45mm, 50mm, 55mm, 65mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm.

Wire diameter: 3.5-6.0mm

Length: 5.0-25.0m

Width: 0.5-4.0m

PVC Coated Chain Link fence Dimension

Mesh

Wire Diameter

Width

Length

40mmx40mm

2.8mm--3.8mm

0.5m--4.0m

5m-25m

50mmx50mm

3.0mm--5.0mm

0.5m--4.0m

5m-25m

60mmx60mm

3.0mm--5.0mm

0.5m--4.0m

5m-25m

80mmx80mm

3.0mm--5.0mm

0.5m--4.0m

5m-25m

100mmx100mm

3.0mm--5.0mm

0.5m--4.0m

5m-25m



Surface treatment

Min

Max

Electro Galvanized

15g/㎡

25g/㎡

Hot dip galvanized

30/㎡

366g/㎡

PVC/PE Coated

400microns

1000microns
