Copper Wire Annealing and Tinning Machine
Product Description
Membership：Free Member Scince Apr 28, 2022
FOB Price：18900USD
Min. Order Quantity：one set
Supply Abillity：50 Sets per Quarter
Port：shanghai
Payment Terms：L/C,Western Union,D/P,D/A,T/T,MoneyGram
Package：1-LCL Cargo: standard export wooden case 2-FCL Cargo: stretch film
Keyword：Annealing and Tinning Machine
Product Detail
Company Info
Quick Detail
Place of Origin
China [CN]
Model Number
SY-40H/6M
HS-CODE
8479-40
Package & Delivery Lead Time
Package
1-LCL Cargo: standard export wooden case 2-FCL Cargo: stretch film
Delivery Lead Time
45 days
Detailed Description
PRODUCT OVERVIEW:

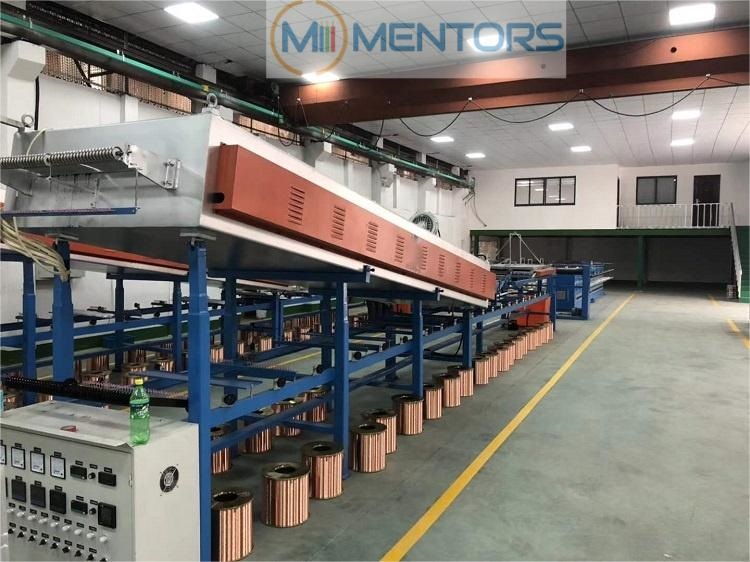

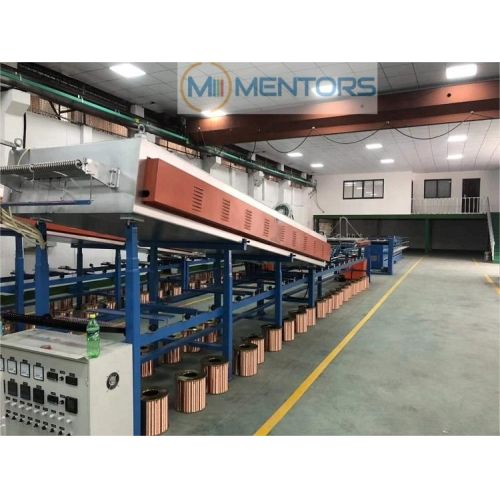

Copper Wire Annealing and Tinning machine is special used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.Finished wire is can be winded by small plastic bobbin or bigger 630 spool .
PRODUCT SPECIFICATIONS:
No | Item | Data |
1 | Machine type | SY-40H/6M |
2 | Length of annealing tank | 6m |
3 | Wire dia | Φ0.10-Φ0.50mm |
4 | Pay-off stand | By brush wire |
5 | Max. speed | 300m/min |
6 | Tin-coating type | Dual tank by heater(optional) |
7 | Pay-off bobbin size | Φ300 or customized |
8 | Spool bobbin size | PT5-PT25 or customized |
9 | Take-up type | Single spooler drive by torque motor |
10 | Annealer | Continuous annealing by heater |
11 | Total power consumption | 65KW |
12 | Machine dimension | 20000L×2200W×1900Hmm |
ADVANTAGES:
(1)Add one room inside the annealing, which can make the temperature impartial distribution.
(2)It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(3)Support steel for annealing tube won’t touch up and down site of the annealing body,the heat won't be dissipated quickly.
(4)Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
FAQ:
Q1: What’s the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.
Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
