Techwin 3 IN1 HD-SDI Video Surge Protectorpowercontrol Line and Video Arrester
Product Description
Min Order Quantity：100 Piece
Country/Region：China
City：Shenzhen
Product Attributes
- - Model Number SDI-3
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Color Dark Blue
- - Related Keywords SPD for Video Camera, SPD for CCTV, SPD for PDH, SPD for SPDH
Description by Manufacturer
Techwin 3 in1 HD-SDI Video Surgeprotector，power，control line and video arrester
| APPLICATIONS: Designed for monitor device not to be spoiled by lightning over-voltage, induced over-voltage, and static discharge. ● Video Camera, CCTV ● E1, PDH, SDH, SPDH ●Digital hard disk video cassette recorder (DVR) ●Security system, Access control system, Protection for the monitoring system. ●HD SDI surveillance system; Video transmission equipment; | |
| FEATURES: ● Multi. Protection circuits, Gas-Tube+ TVS technology ● Dual protection in Common module and different module ● TVS array technology, low capacitance ● Multi-Strike Capability ● Patent technology | |
|
TECHNICAL PARAMETER： |
|
| Model | SDI-3 |
| Electrical Parameter | |
| Max. continuous operating voltage Uc | 12V |
| Nominal discharge current（8/20µs）In | 3kA |
| Max. discharge current （8/20µs）Imax | 5kA |
| Limiting voltage (10/700µs) Up | 100V |
| Line-line | 60V |
| Line-ground | 500V |
| Adapt transmission rate Vs | 1.485Gbps |
| Bit Error Rate | ≤10-12 |
| Response time Ta | 1ns |
| Interface form | BNC(J,K or according to the actual requirement |
| Protection way | 2 |
| Protection port | 2 |
| Mechanical characteristics |
|
| Dimension | 118(L) ×90(W) ×45(H)mm |
| Weight per unit |
|
| IP Code | IP20 |
| Working conditions | Temperature: -40 to 80℃, Relative humidity: ≤95％ |
| Standards compliance | IEC61643-1, RoHS |
Price
- Price US$ 1 / Piece

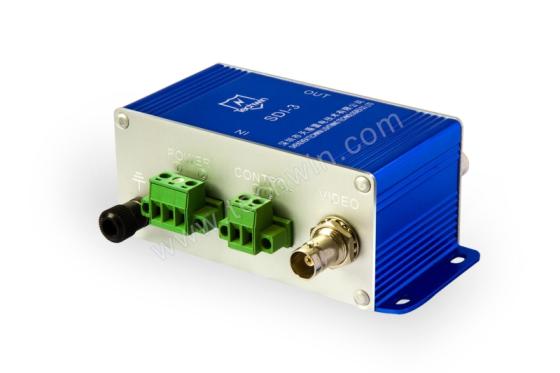

Product Image
