Ndt Detector Industrial X-Ray Testing Portable X-Ray Flaw Detector X Ray Inspection Metal
Product Description
Min Order Quantity：1 Set
Supply Ability：20 units /Month
Port：China
Delivery Lead Time：Shipped in 3 days after payment
Country/Region：China
City：Shenyang
Product Attributes
- - Model Number XXG2005
- - Place of Origin China
- - Output Voltage 100kv-200kv
- - Output Current 5mA
- - Max. Penetration 30mm
- - Generator Size 165mm*560mm
- - Cooling Type Radiator forced air cool
- - Related Keywords Ndt Detector, Industrial X-Ray Testing, X-Ray Flaw Detector, X Ray Inspection Metal
Description by Manufacturer
Ndt Detector Industrial X-Ray Testing Portable X-Ray Flaw Detector X Ray Inspection Metal
Product Description

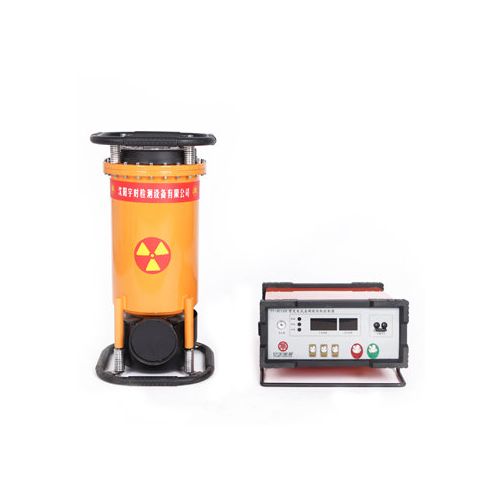

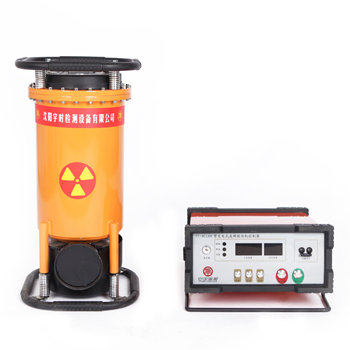

XXG/2005T Type Portable X-ray Flaw Detector with Directional Ceramic X-Ray Tube
★ Adopt the newest energy conversion, and rose to high-frequency operation, which make energy conversion rate improved by 30% compared with the traditional equipment, break through the traditional 1:1 working mode, no rest time requirement.
★ Low heat, continuous working does not affect the service life.
★ 4000 turn all metal cooling fan make larger effective heat dissipation area; There will be no frequent over temperature protection during the full power continuous operation.
★ Non flange design, small and beautiful apperance; End ring groove design make it easy to fix on the top of the pipe.
★ Using high frequency paper film transformer, with strong heat resistance, low heat, High working efficiency and Low failure rate.
Detailed Images
Model | XXG/2005T | XXG/2505T | XXG/3005T | XXG/3505T |
| XXGHZ/2005T | XXGHZ/2505T | XXGHZ/3005T | XXGHZ/3505T | |
| Power Supply | 160V~255V 50~60HZ | |||
| Power Capacity | ＞1.0KVA | ＞1.5KVA | ＞2.0KVA | ＞2.5KVA |
| Tube Voltage | 100KV~200KV | 150KV~250KV | 170KV~300KV | 220KV~360KV |
| Tube Current | 5mA | |||
| Controller Size | 350mm×300mm×135mm | |||
| Controller Weight | 10kg | |||
| Controller Delaying Time | 0-1 min. | |||
| Timing Range and Error | minute error ±1% | |||
| Working Mode | Continuous Working; Exposure at any time; No mandatory rest | |||
| Insulation | SF6 Gas | |||
| Cooling | Radiator forced air cooling | |||
| Safety Working pressure | 0.35~0.6Mpa | |||
| X-Ray Generator Size (mm)Ф×H | Ф165×560 | Ф200×590 | Ф230×600 | Ф260×650 |
| Ф165×560 | Ф200×590 | Ф230×600 | Ф260×650 | |
| X-Ray Generator Weight (kg) | 17 | 24 | 32 | 34 |
| 16 | 23 | 31 | 33 | |
| Max. Penetration (mm) | 30 | 40 | 50 | 75 |
| 23 | 34 | 44 | 70 | |
Working Conditions of X-ray Photography | 1. Focus to Film: 600mm 2. Exposure time: 5 min. 3. Film: TianJin, Model III, intensified by double lead foil. 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. blackness ≥ 1.5. sensitivity≤2% |
Packing & Delivery
| No. | Name | Quantity | Unit |
| 1 | X-Ray Generator | 1 | Set |
| 2 | X-Ray Controller | 1 | Set |
| 3 | Power Cable | 10 | m |
| 4 | Connection Cable | 20 | m |
| 5 | Earth Wire+Earth Pin | 1 | Set |
| 6 | Fuse(20A) | 5 | Piece |
| 7 | Key | 2 | Piece |
| 8 | Operating Manual | 1 | Piece |
| 9 | Operating Manual | 1 | Piece |
| 10 | Certificate of inspection | 1 | Piece |
| 11 | Certificate of inspection | 1 | Piece |
Our Company
Shenyang Yushi Xianfeng Inspection Instrument Co.,Ltd is a professional NDT instrument manufacture located in Shenyang, China. We are established in year 1985 and we have many years experience in NDT instruments manufacture. We mainly produce ultrasonic thickness gauges, leeb hardness testers, coating thickness gauges, Industrial X-ray film viewers, UV lamps, etc.
Contact Me
Price
- Price US$ 4613 ~ 6150 / Set
Packaging & Shipping
- - PackingShipped in 3 days after payment
- - Packaging Size350 x 300 x 135 ( Millimeters)
- - Package Weight 8 ( Kilograms )
- - Delivery Lead TimeShipped in 3 days after payment
- - Minimum Order 1 Set
- - Supply Ability20 units /Month
- - Delivery PortChina
