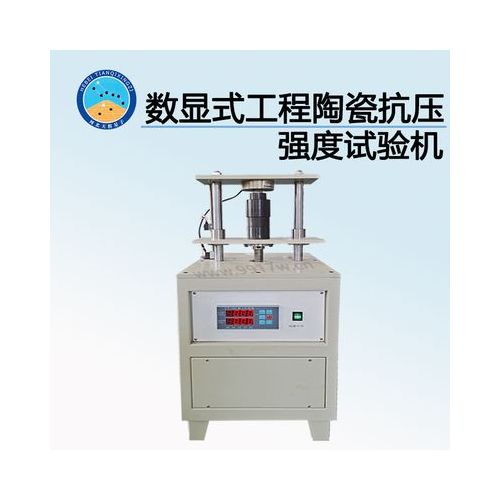

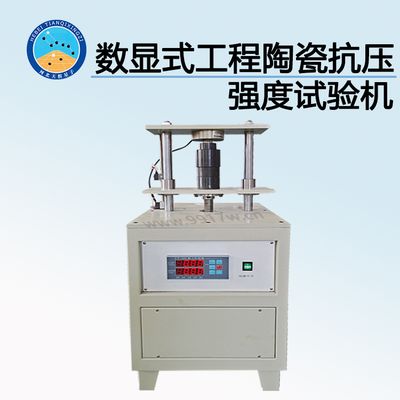

TD8489-SDY Digital Display Engineering Ceramic Compressive Strength Testing Machine
Product Description
Delivery：-
Origin：-
Packing：-
Inspection：-
TD8489-SDY digital display engineering ceramic compressive strength testing machine (also known as digital display porous ceramic compressive strength testing machine)
This instrument complies with GB-T 8489-2006 test method for compressive strength of fine ceramics and 1964-1996 test method for compressive strength of porous ceramics, and is suitable for mechanical parts, structural materials of high-strength engineering ceramics, and high-strength functional ceramics at room temperature. Determination. It is also suitable for compressive strength testing of non-metallic materials such as glass, refractory materials, and thermal insulation materials.
The main technical parameters
1. Maximum load: 10000, 20000, 50000 (N) and other specifications are optional;
2. Loading rate: 50-7KN/min adjustable;
3. Platen diameter: 50mm (or other sizes according to customer requirements);
4. The data is processed by microcomputer, with an accuracy of 0.5%;
5. Voltage: 220V for 20000N and below, 380V for specifications above 20000N;
6. Digital display of pressure, and maintain pressure peak.
