Product Description
1. Specification:
Mass |
Curb Weight (kg) |
2310 |
Dimensions |
Overall dimensions of Truck Assembly |
Length (mm) |
6901 |
||||||||
Axle Load distribution (kg) |
Front |
1370 |
Width (mm) |
2150 |
||||||||||
Rear |
940 |
Height (unload) (mm) |
2330 |
|||||||||||
Gross Weight Full Load (kg) |
3400 |
Wheel Base (mm) |
3860 |
|||||||||||
Axle Load distribution (kg) |
Front |
2100 |
Wheel Track (mm) |
Front |
1650 |
|||||||||
Rear |
1300 |
Rear |
1540 |
|||||||||||
GVW (kg) |
7500 |
Min. Ground Clearance(under rear axle) (mm) |
200 |
|||||||||||
Max. Axle Load distribution (kg) |
Front |
2720 |
Approach Angle (°) |
18 |
||||||||||
Rear |
4780 |
Departure Angle (°) |
14 |
|||||||||||
Max. traction weight (kg) |
^^ |
Front Overhang (mm) |
1241 |
|||||||||||
Max. GVW of tractor and trailer |
^^ |
Rear Overhang (mm) |
1800 |
|||||||||||
Max. allowed load on fifth-wheel (kg) |
^^ |
Clearance of fifth-wheel from ground (loaded) mm |
^^ |
|||||||||||
Performances |
Min. Steering Diameter (m) |
14.2 |
Traction pin diam |
^^ |
||||||||||
Max. Speed (km/h) |
108 |
Engine |
Model |
CA498E3-12 |
||||||||||
Max. Gradeability (%) |
24 |
Displacement (L) |
3.168 |
|||||||||||
Parking Brake Grade Angle (%) |
18 |
Max. Output Power kW/(r/min) |
90/3200 |
|||||||||||
Direct Shift Min. Stable Speed(km/h) |
26 |
Max. Torque Nm/(r/min) |
320/1900~ |
|||||||||||
Direct Shift Accelerate Time (s) |
|
|||||||||||||
Rated Fuel Consumption g/(kW.h) |
|
|||||||||||||
Sliding Distance (from 50km/h) (m) |
≥1050 |
Min. Fuel Consumption g/(kW.h) |
205 |
|||||||||||
Braking Distance (from 30km/h) (m) |
≤10 |
Cab |
Type |
Cab-over-engine, all metal closed, integral front tilting angle 44º |
||||||||||
Fuel Consumption (l/100km) |
11 |
|||||||||||||
Fuel Tank Capacity (L) |
90 |
Seats |
3 |
|||||||||||
Frame |
Type |
Side rails, punching and riveted construction |
Clutch |
Type |
Dry type, single plate, diaphragm spring clutch, hydraulic controlled and air aided power operating |
|||||||||
Main Rail section |
200×65×5 (mm) |
|||||||||||||
Auxiliary Rail Section |
^^ |
Driven Plate Dia. |
φ300(mm) |
|||||||||||
Transmission |
Model |
WLY5-35 |
Power Steering |
Model |
Integrated power steering |
|||||||||
Forward Shifts Ratio |
i1=5.057, i2=2.609,i3=1.565, i4=1, i5=0.764 |
Ratio |
17.76 |
|||||||||||
Pump Max. pressure (MPa) |
10 |
|||||||||||||
Reverse Shift Ratio |
5.118 |
|||||||||||||
Wheel Alignments |
Wheel Camber |
1°30' |
Brake System |
Rated working air pressure (kPa) |
810 |
|||||||||
Kingpin inclination |
7° |
Driving Brake |
Dual circuit, air pressure brake |
|||||||||||
Caster |
1°30' |
Parking Brake |
Spring energy storage type |
|||||||||||
Toe-in (measured onΦ648 diameter) |
2~4(mm) |
Auxiliary Brake |
Exhaust Brake |
|||||||||||
|
|
|||||||||||||
Rear Axle |
Type |
1058 single reduction |
Electrical System |
Type |
Single line, negative earthed |
|||||||||
Reduction Ratio |
5.571 |
Voltage |
24V |
|||||||||||
Generator |
1500W |
|||||||||||||
differential |
Inter-axle differential lock |
Battery (V/Ah) |
12/100 |
|||||||||||
Body |
Measurement (mm) |
(optional) 5170*2050*400 |
Wheel |
Rim |
6.*16 |
|||||||||
Tyre |
Model |
7.50R16-14 |
||||||||||||
Air pressure (kPa) |
660 |

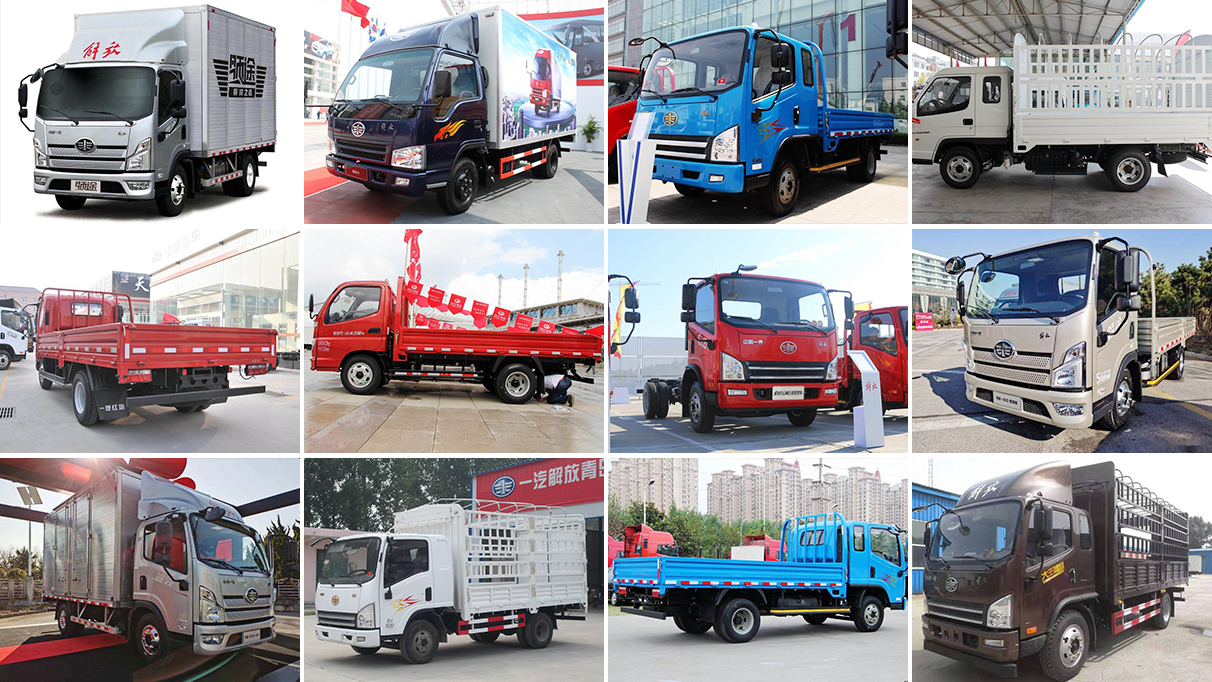

2. Products more details:

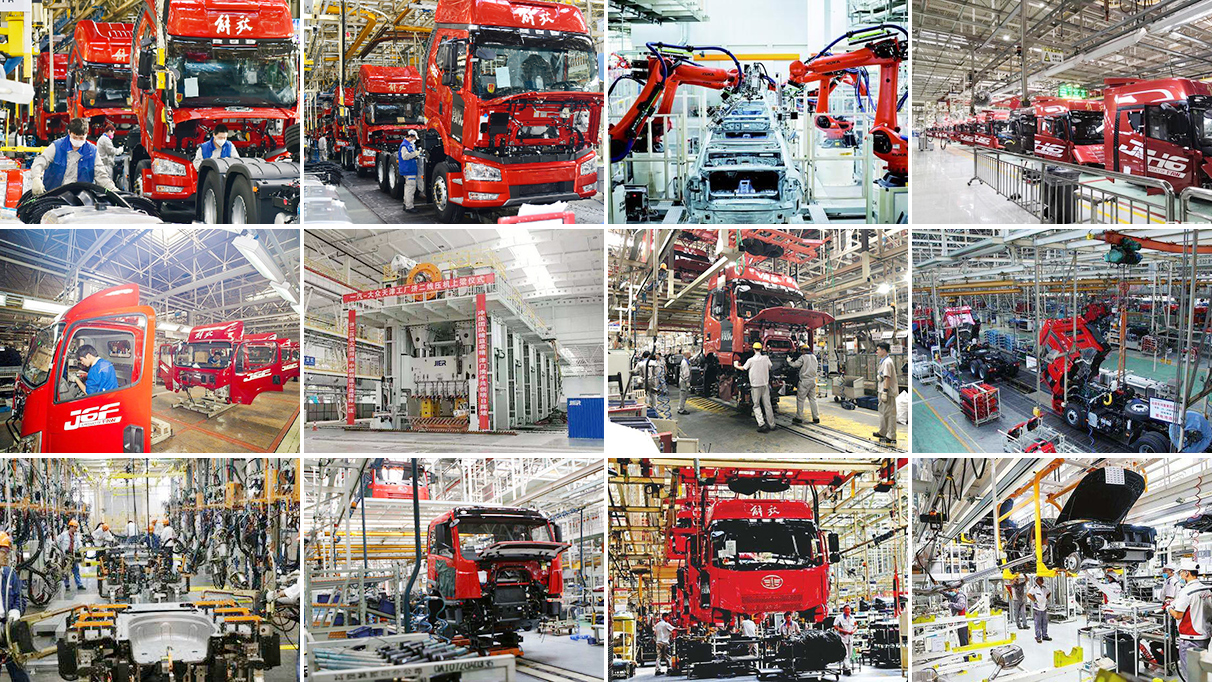

3. Assembly line
4. About FAW:
China First Automobile Group Corporation, referred to as "China FAW" or "FAW", is a state-owned super large automobile production enterprise. FAW is headquartered in Changchun City, Jilin Province, formerly known as the first automobile manufacturing plant, and Chairman Mao Zedong inscribed the name of the plant. FAW laid the foundation in 1953, completed and put into operation in 1956, and manufactured the first Jiefang Truck in New China. In 1958, the first Dongfeng sedan and the first Hongqi limousine in New China were manufactured. The completion of FAW has created a new history of China's automobile industry. After more than 50 years of development, FAW has become one of the largest automobile enterprise groups in China.
After years of development and construction, FAW has cultivated a corporate culture with the core concept of "striving for the first, innovating and taking responsibility" and the enterprise spirit of "learning, innovation, struggle and self-improvement". A modern enterprise system to meet the needs of market competition has been preliminarily established. It has gradually formed production bases in Northeast, north, southwest and South China, and formed an open development pattern with reasonable layout, radiating the whole country and facing overseas. New factories such as trucks, cars, light cars and buses have been transformed and built, forming a more advanced production and manufacturing position. Independent R & D and the core competitiveness of the enterprise have been continuously improved, forming a product pattern of multiple varieties and wide series of trucks, cars, light vehicles and buses. It has independent brands such as Jiefang, Hongqi, Pentium and Xiali and joint venture brands such as Volkswagen, Audi, Toyota and Mazda.
Facing the future, FAW put forward the enterprise vision and goal of "adhering to the user first, respecting the value of employees, protecting the interests of shareholders, promoting social harmony, and striving to build an internationally competitive 'independent FAW, powerful FAW and harmonious FAW'". FAW people are fighting for strength and rising with their own unique automobile feelings, in order to promote the sound and rapid development of automobile industry and realize people's development? Car? Make new and greater contributions to the harmonious development of society.
5. Customer visit

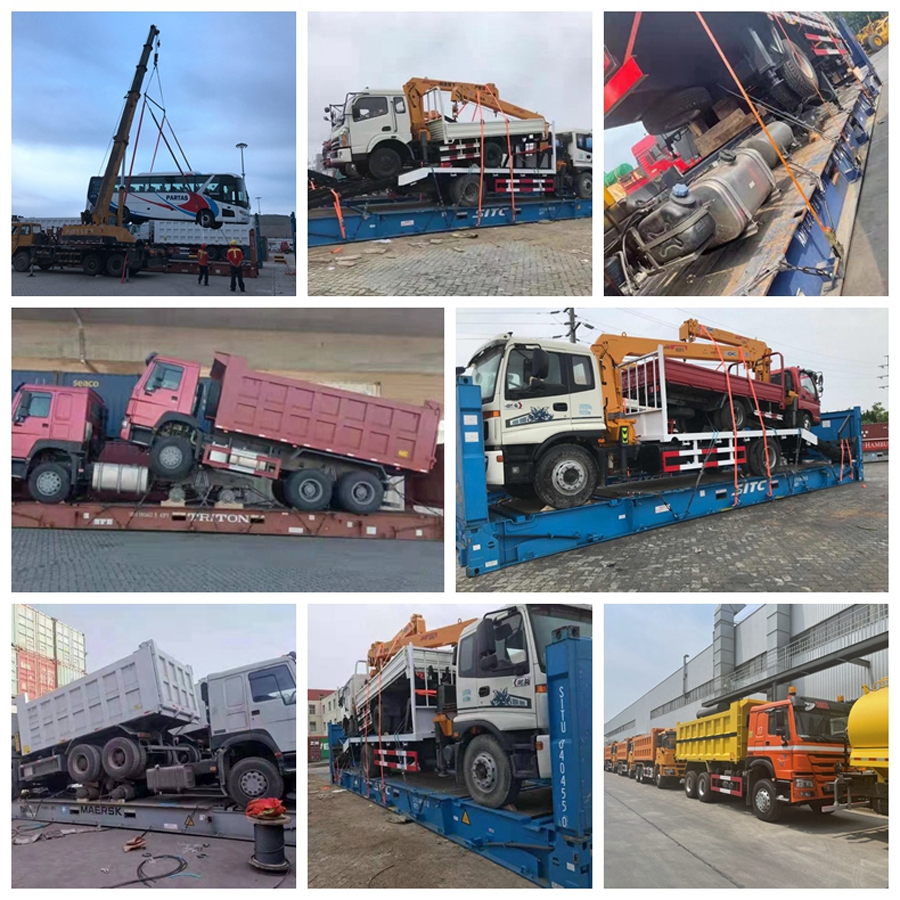

6. Forwarding
