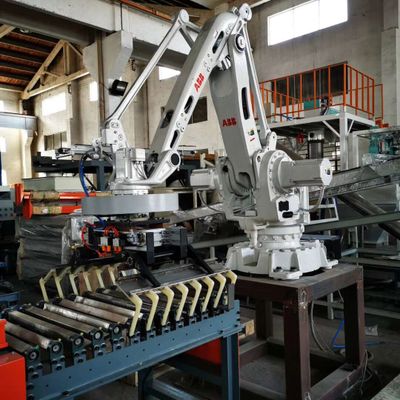

Robot palletizer, palletizing machine
Description
Robot palletizer adopts advanced palletizing robot for stacking. Simple structure, small covering space, simple operation, low power consumption and easy maintenance. Using touch-screen operation.
Robot palletizer is widely used in the packaging machinery industry. The latest robot palletizing machine has the features of simple structure, small size, light weight, faster speed, more safety, energy-saving, good looking, less power, etc. And it can significantly shorten the length of the production line, reduce the amount of equipment and simplify the work procedures. Through setting, the robot will be able to complete the task of discharging and palletizing nylon (paper) bags, plastic bag, cardboard box, plastic containers, glass bottles, etc.
It’s optional to install automated bagging machine, packing machine loading conveyors, dust collector, sewing machine, heat sealing machine, weight checker, metal detector, coding machine, pallet wrapping machine, etc. to make the complete production line. Produced by Wuxi HY Machinery Co., Ltd.
Technical Parameter
Model: ABB / Kawasaki / Estun
Grasping scope: 10-50kg bag, customized as per requirement
Palletizing capacity: customized, matching with the automatic packing machine line.
The mechanical structure: Multi-joint robot
Action mode: cylindrical coordinate type
Grasping hand: finger type
Stacking memory capacity: standard 30 kinds (up to 400 kinds)
Stack height: max.2300mm
Stack width: max.1500mm
Control Method : PLC
Square area: L 2000mm×W4000mm
Stack type structure: customized
Stack form: According to the user’s needs, single/double station
