HOWO Cargo Truck

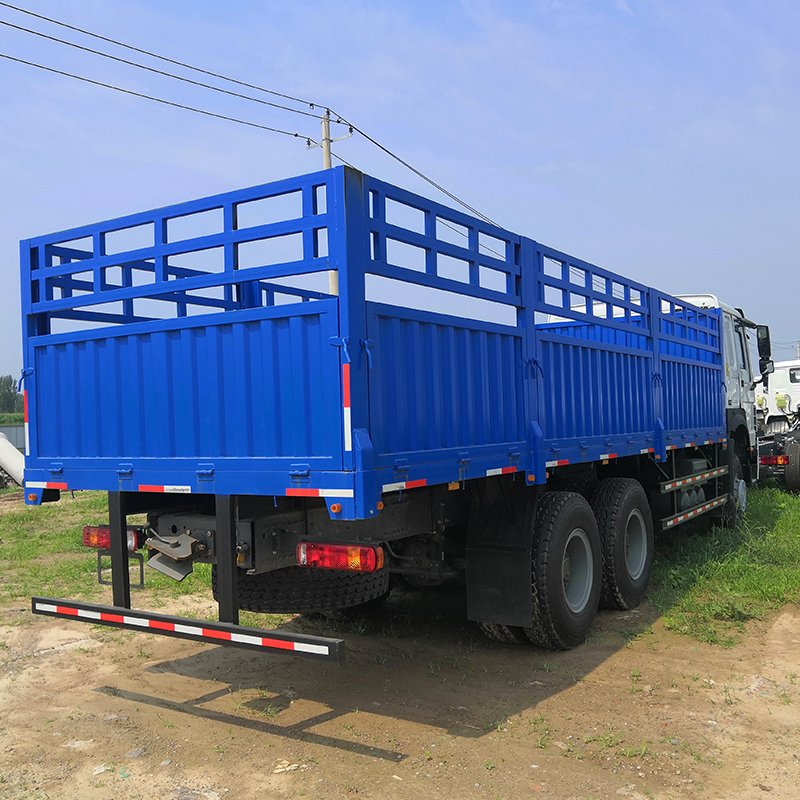

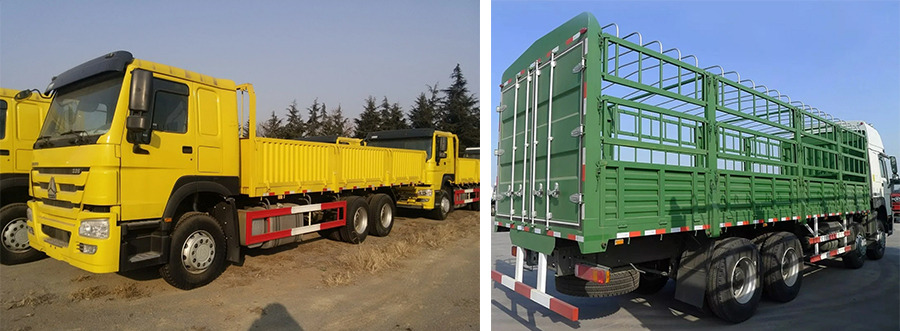

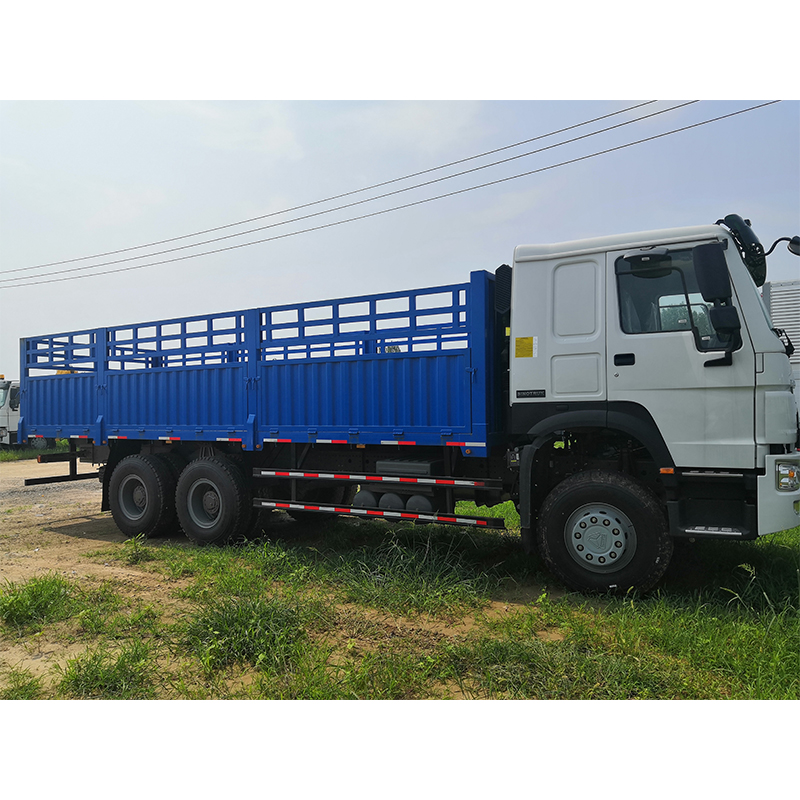

HOWO Sidewall Fence Drop-side Cargo Truck

SINOTRUK-HOWO (LHD)

Truck Model

ZZ1257M5247

Dimension(Lx W x H) (unloaded) (mm)

11184x2496x3700

Cargo body dimension (L x W x H) mm

8480x2400x2200mm

Approaching angle/Departure angle (°)

16/10

Overhang (front/rear) (mm)

1500/3109

Wheel base (mm)

5225+1350mm

Max speed (km/h)

102

Curb weight(kg)

11400

Loading Weight(kg)

25000

Engine
(Steyr technology, made in China)

Model

water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection

Fuel type

Diesel

Horse Power, max(kw/rpm)

290HP

Emission

EURO II

Fuel tanker capacity (L)

300

Transmission

Model

HW13710CL, 10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098 hydraulic steering with power assistance

Front axle

HF7

Rear axle

ST13

Color

Optional

Tyre

295/80R22.5 tubeless tires

Tyre quantity

10pcs + 1 spare

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

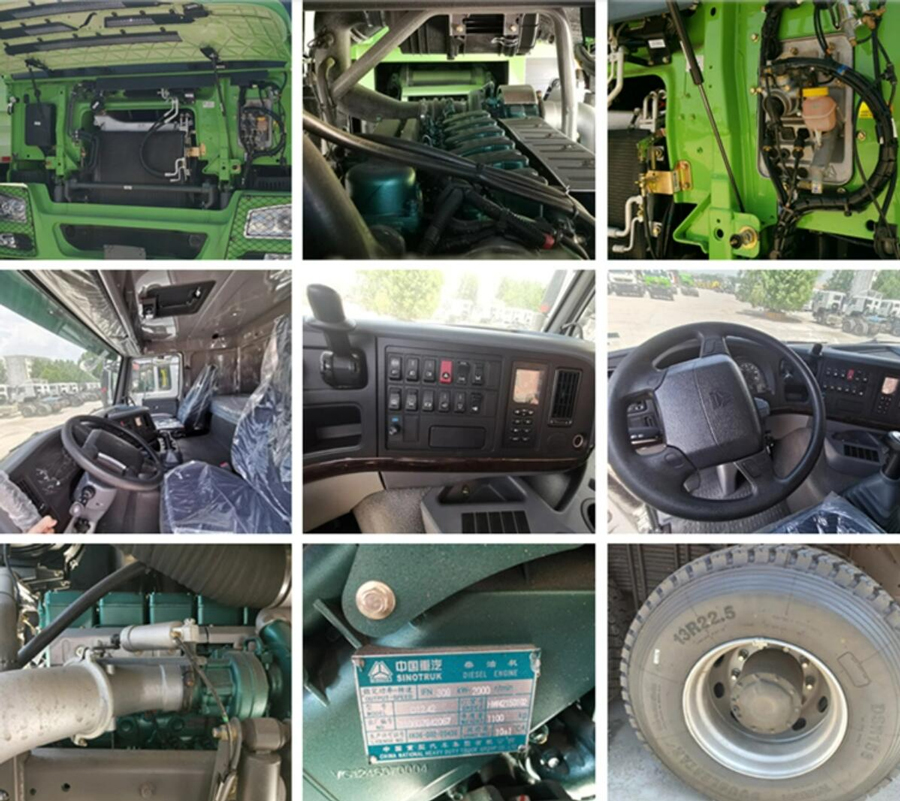

Cab

HW76 cab, one sleeper with air conditioner, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
